Grinding

Superior surface finishes and dimensional accuracy, every time.

Precision Grinding Solutions

G11 Manufacturing Solutions represents ST Grinders and Kellenberger, offering cylindrical, surface, and profile grinding equipment for the most demanding finishing requirements. When tolerances are measured in microns, the right grinding solution makes all the difference.

Our team helps you evaluate wheel specifications, dressing systems, coolant requirements, and automation options — so your grinding process is optimized from the start.

Capabilities

  • Cylindrical OD/ID Grinding
  • ID Grinding
  • Centerless Grinding
  • Surface Grinding
  • Universal Grinding Centers
  • Vertical Grinding
  • Jig Grinding

Grinding Solutions

Explore our grinding capabilities — each machine selected for precision, reliability, and application fit.

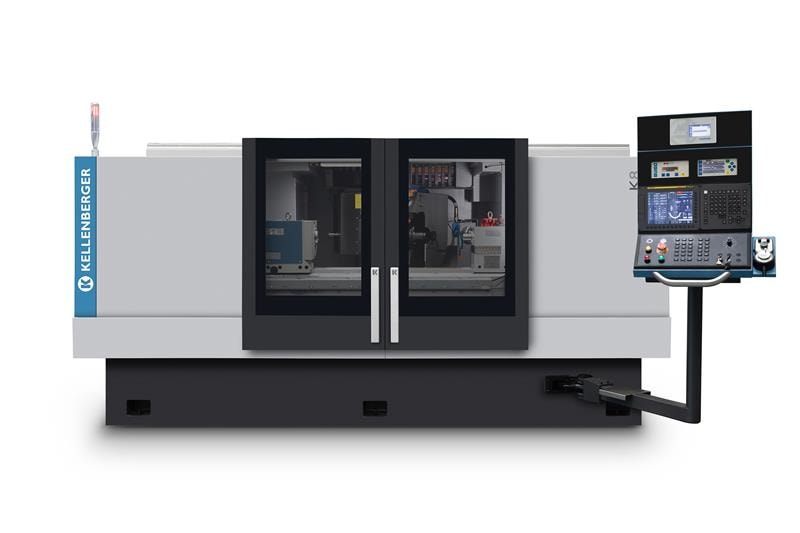

Cylindrical OD/ID Grinding Centers
Cylindrical OD/ID Grinding

Cylindrical OD/ID Grinding Centers

Universal cylindrical grinding centers are available for OD, ID, and face grinding in a single setup. Workpiece capacities range from small precision components up to 650mm swing and 2,000mm between centers, with grinding wheel speeds up to 60 m/s. Hydrostatic or precision roller bearing spindles deliver roundness within 0.1µm and surface finishes below Ra 0.1µm — ideal for aerospace shafts, hydraulic components, spindles, and bearing journals.

Learn More →
ST Grinders Surface Grinding Centers
Surface Grinding

ST Grinders Surface Grinding Centers

ST Grinders surface grinding centers deliver precise flat, angular, and contour surface finishing across a range of workpiece sizes. Featuring rigid cast iron construction, automatic cross-feed, and programmable depth of cut, these machines achieve consistent flatness and superior surface finishes — the standard for tool & die, mold making, and precision component finishing.

Learn More →
ST Grinders STC Series Centerless Grinders
Centerless Grinding

ST Grinders STC Series Centerless Grinders

The ST Grinders STC Series centerless grinders are available in CNC, NC, and manual configurations across the STC 1206 and STC 1808–2012 platforms — covering a wide range of part diameters and production volumes. Through-feed and in-feed grinding modes allow high-throughput finishing of cylindrical components without centers or fixtures, delivering consistent roundness, tight diameter tolerances, and excellent surface finishes. Ideal for pins, shafts, rollers, bushings, and other round components requiring repeatable, high-volume OD grinding.

Learn More →
Universal Grinding Centers
Universal Grinding Centers

Universal Grinding Centers

Multi-process universal grinding centers combine OD, ID, and surface grinding on a single platform, eliminating multiple setups and reducing part handling. Swiveling wheelhead configurations allow angular approach for tapers, shoulders, and complex profiles. Available with center heights from 125mm to 250mm and distances between centers up to 1,500mm, these machines maximize throughput on complex, tight-tolerance workpieces.

Learn More →
Dawn Machinery DN Series Vertical Grinders
Vertical Grinding

Dawn Machinery DN Series Vertical Grinders

The Dawn Machinery DN Series CNC vertical grinders (DN 500–1600) are engineered for high-precision OD, ID, and face grinding of chucked workpieces in a single clamping. The vertical orientation provides gravity-assisted workholding for superior stability on heavy, large-diameter parts — minimizing deflection and maximizing repeatability. Chuck capacities span 500mm to 1,600mm, making the DN Series the right choice for bearing rings, flanges, gears, turbine housings, and large rotational components requiring tight roundness and perpendicularity tolerances.

Learn More →

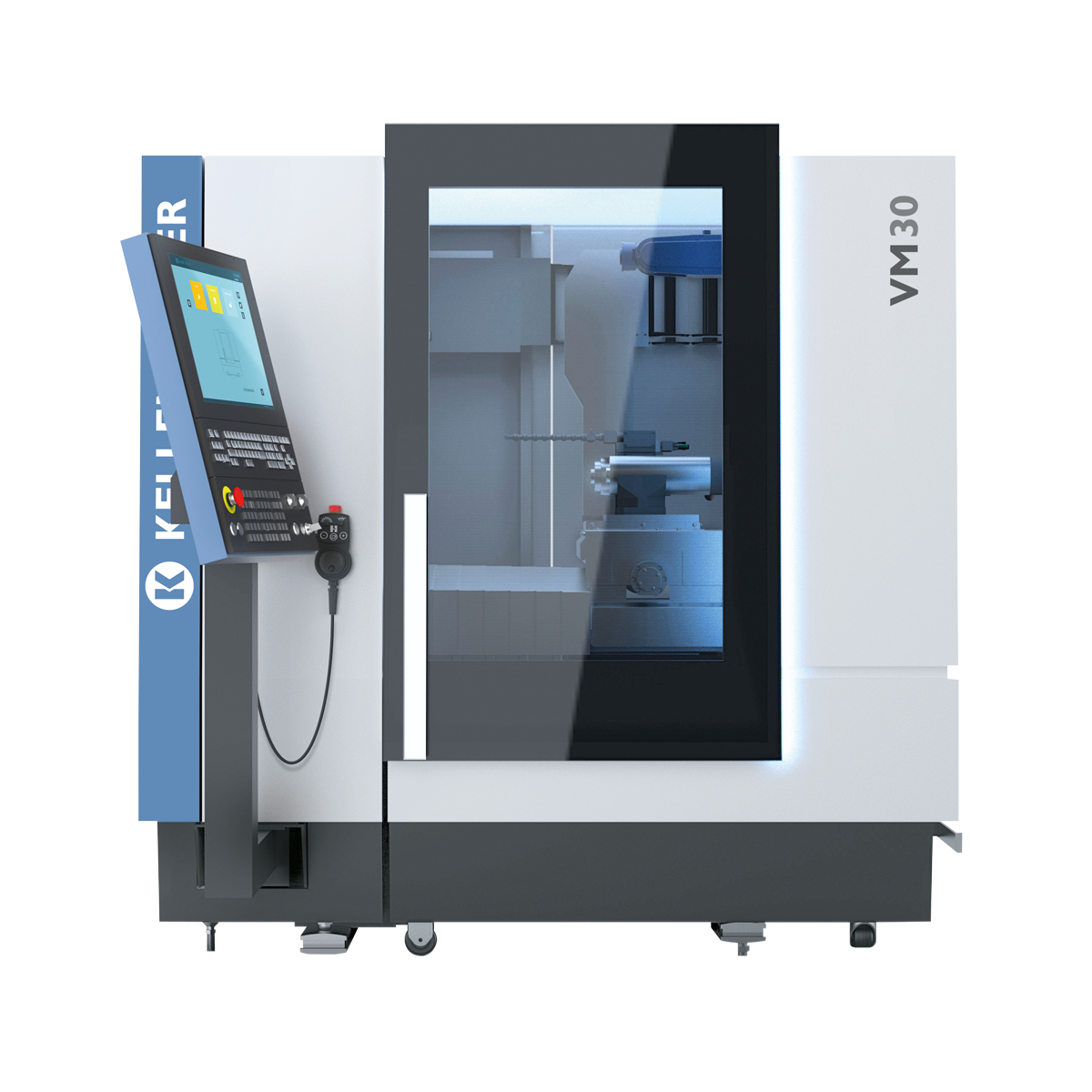

ID Grinding Centers
ID Grinding

ID Grinding Centers

Dedicated internal diameter grinding centers are engineered for tight-tolerance bores, blind holes, and complex internal geometries in hardened materials. High-frequency internal grinding spindles operate at up to 120,000 RPM for small bore work, with bore diameter ranges from 3mm to over 400mm. Delivers roundness within 0.2µm and surface finishes below Ra 0.1µm on through-bores, stepped bores, and tapered IDs.

Learn More →
Jig Grinding Centers
Jig Grinding

Jig Grinding Centers

High-accuracy jig grinding centers deliver positional accuracy within ±0.001mm for precision bores, contours, and complex geometries in hardened materials. CNC-controlled planetary spindle heads allow interpolated contour grinding of pockets, radii, and profiles without repositioning. Available with table sizes from 400 × 250mm to 1,200 × 700mm — the standard for precision mold shops, tool rooms, and aerospace fixture manufacturing.

Learn More →

Find the Right Grinding Solution

Let our team match you with the grinding equipment that meets your finish and tolerance requirements.
